Distributed ESS JF1 optimized for the 2026 Sunshine Income Village

Rack Type ESS




High-efficiency air-cooled systems featuring modular stacking options for maximum space utilization and seamless capacity expansion.

Easy Expand Architecture

Easy Expand Architecture

A scalable design architecture that allows for flexible system capacity expansion through parallel connection based on a standardized rack structure.

Easy Expand Architecture

Phased Investment Opportunities

Phased Investment Opportunities

Start with the minimum capacity required and incrementally add modules as power demand grows, without the need to build large-scale facilities sized for maximum load from the outset. This effectively reduces the burden of upfront capital expenditure (CAPEX).

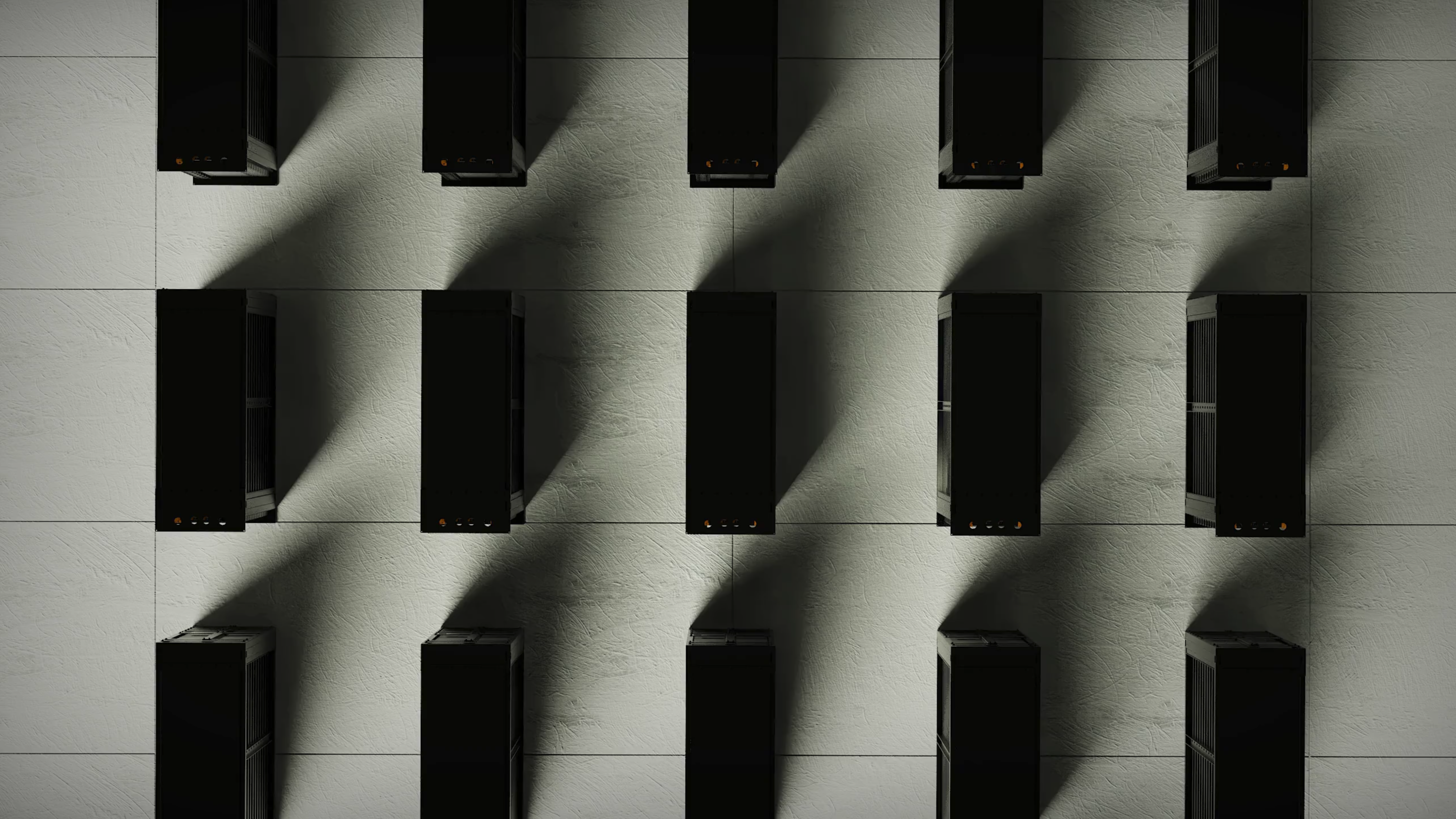

Design and Construction Flexibility

Design and Construction Flexibility

The standardized slot-based design enables rapid capacity expansion without complex wiring redesign or large-scale civil works. This allows fast and flexible adaptation to changing business environments and evolving operational demands.

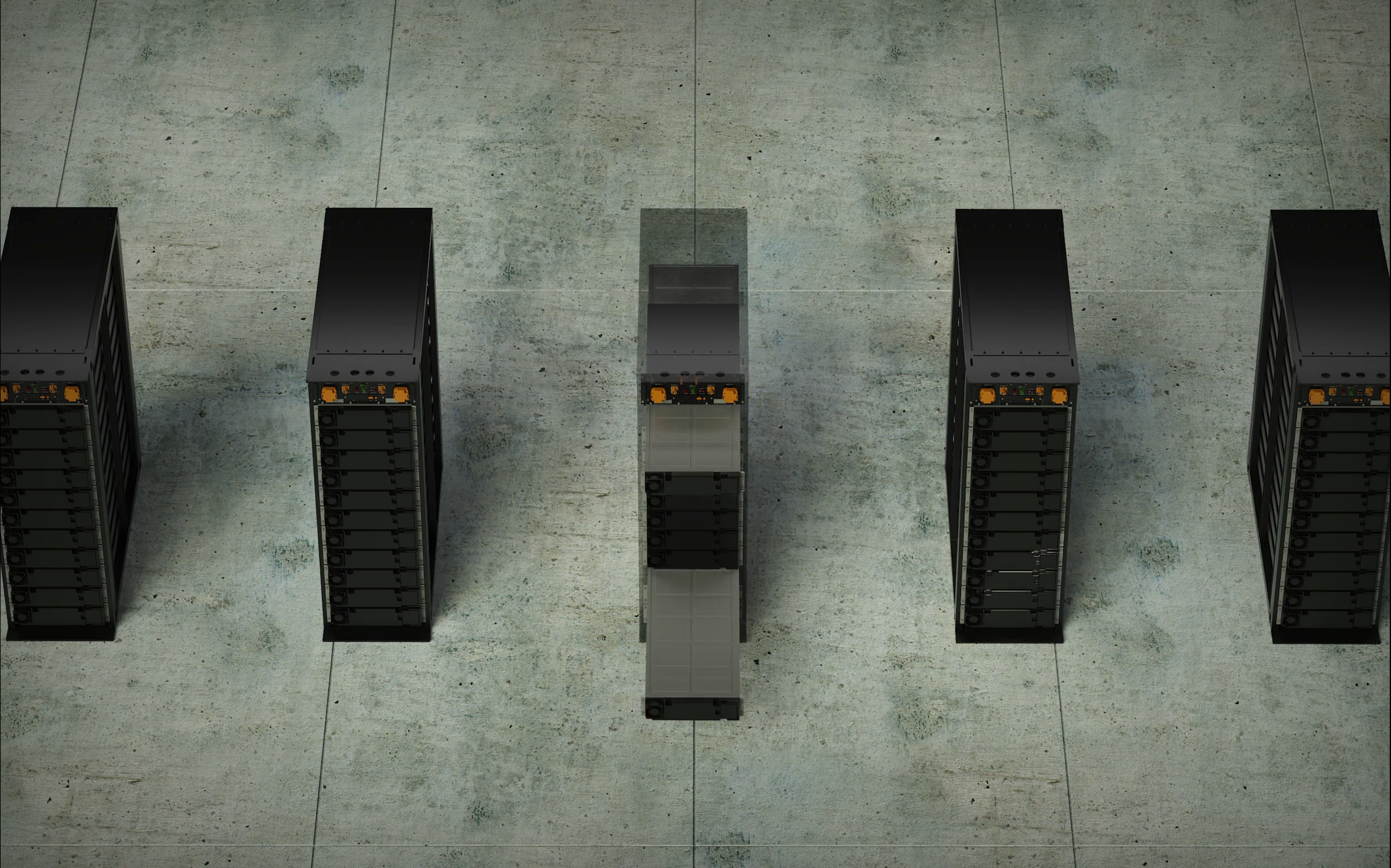

Minimized System Shutdown

Minimized System Shutdown

Leveraging the advantages of a parallel architecture, new modules can be added or faulty modules replaced while the existing system remains in operation. This prevents power supply gaps during expansion and ensures uninterrupted operational continuity.

Diverse Stack Architecture

Diverse Stack Architecture

Highly adaptable rack configurations: Flexibly deployable vertically for tight footprints or horizontally for low-ceiling zones, overcoming all site layout constraints.

Diverse Stack Architecture

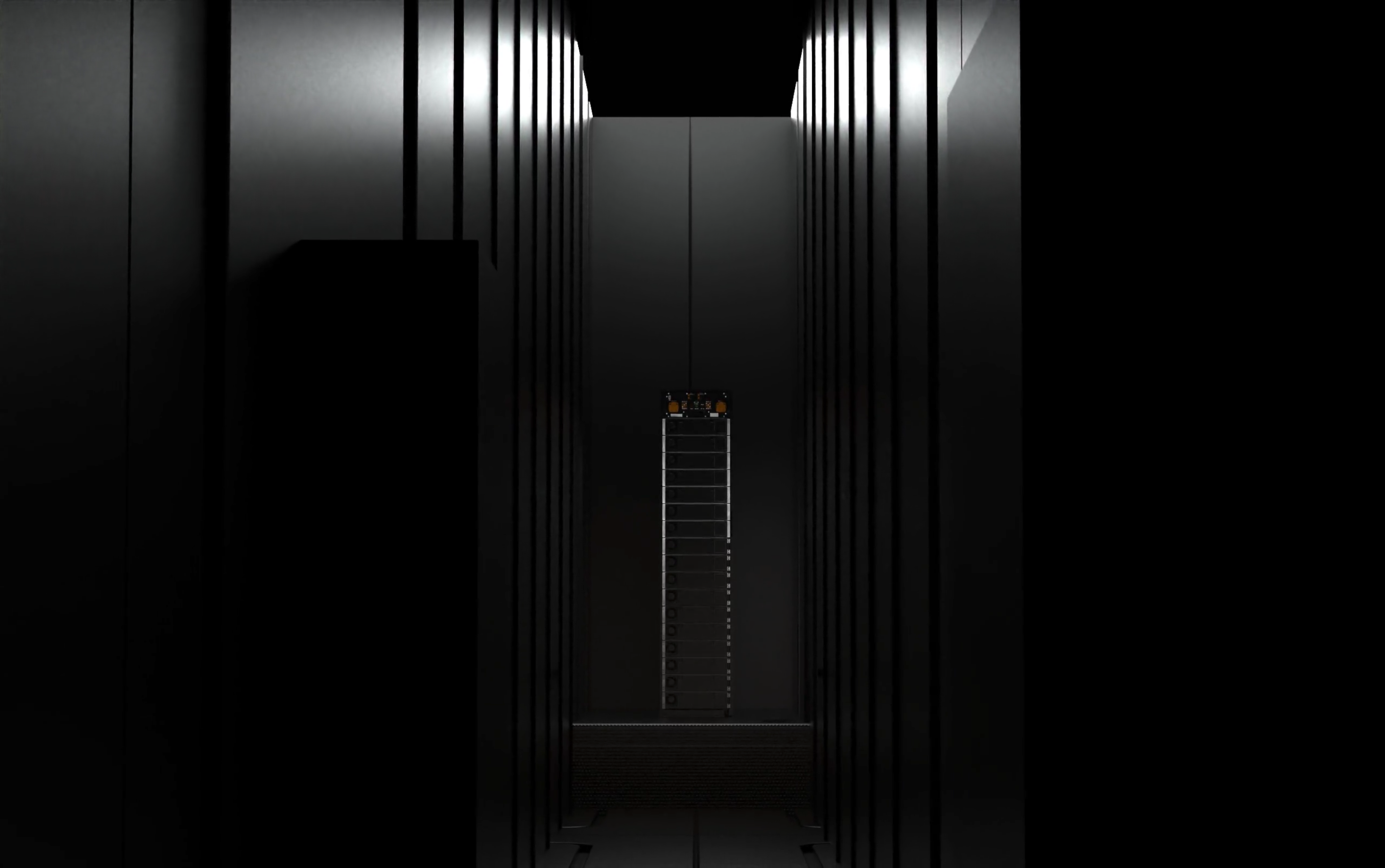

Optimization of Space Efficiency

Optimization of Space Efficiency

In space-constrained environments, racks can be stacked vertically to reduce the occupied footprint, while low-ceiling spaces such as underground facilities allow for a horizontal layout. This customizable design maximizes site utilization across a wide range of installation conditions.

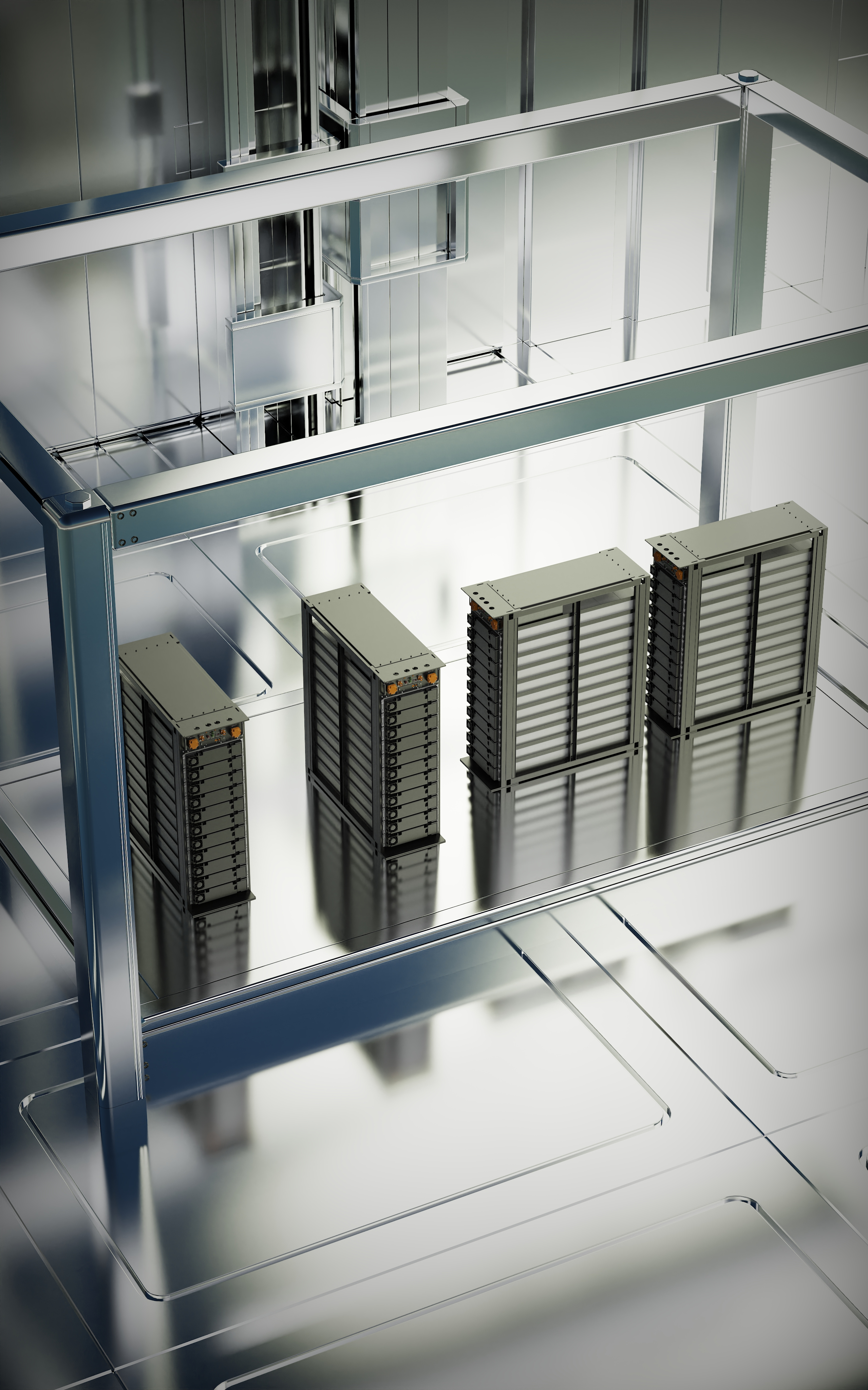

Flexibility in System Design

Flexibility in System Design

Rack placement can be optimized not only for battery capacity, but also to secure maintenance access routes and align with the airflow direction of the HVAC system. This enhances both operational efficiency and ease of maintenance.

Simple and Light-weight Air-cooling Technology

Simple and Light-weight Air-cooling Technology

A design approach where each battery module possesses standalone control capabilities and is connected in parallel.

Simple and Light-weight Air-cooling Technology

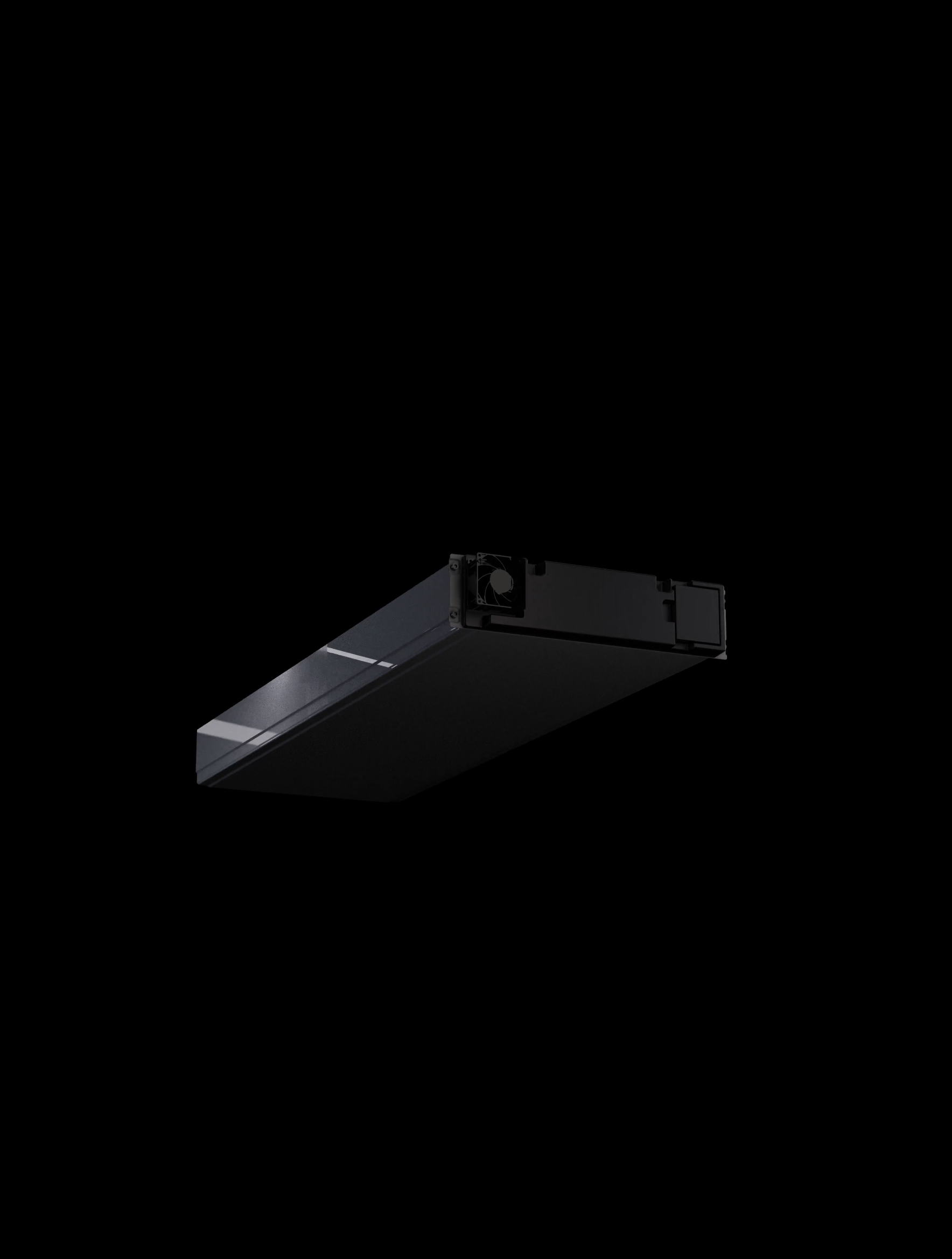

System Lightweighting

System Lightweighting

The elimination of heavy components such as coolant, pumps, radiators, and piping significantly reduces the overall rack weight. This lowers the structural load on buildings, minimizing installation constraints for locations such as rooftops and indoor environments.

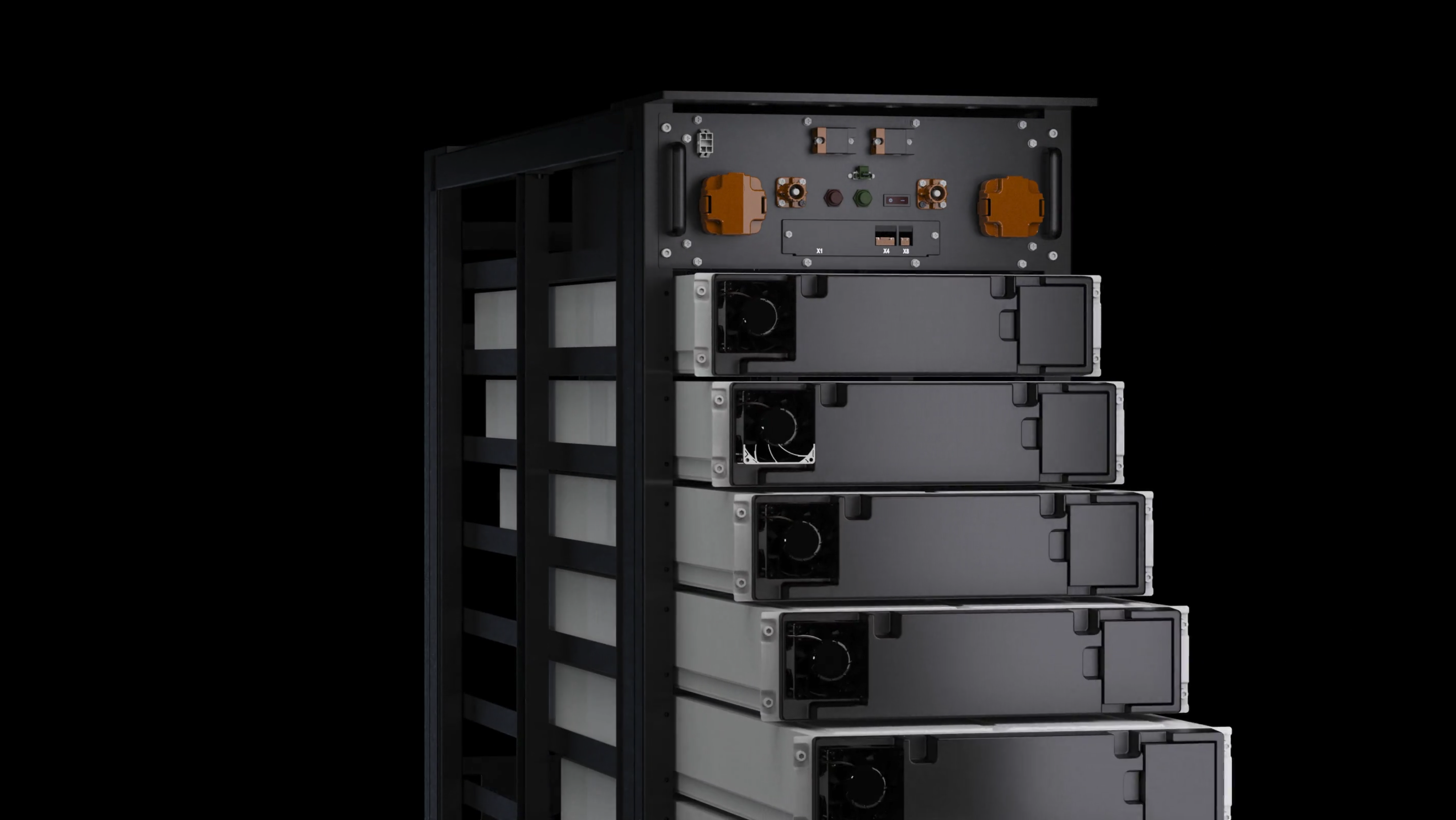

Simplification of Maintenance

Simplification of Maintenance

With no risk of leakage and a simplified structure, the number of potential failure points is minimized. The elimination of coolant replacement and complex piping inspections significantly reduces ongoing operational expenditure (OPEX).

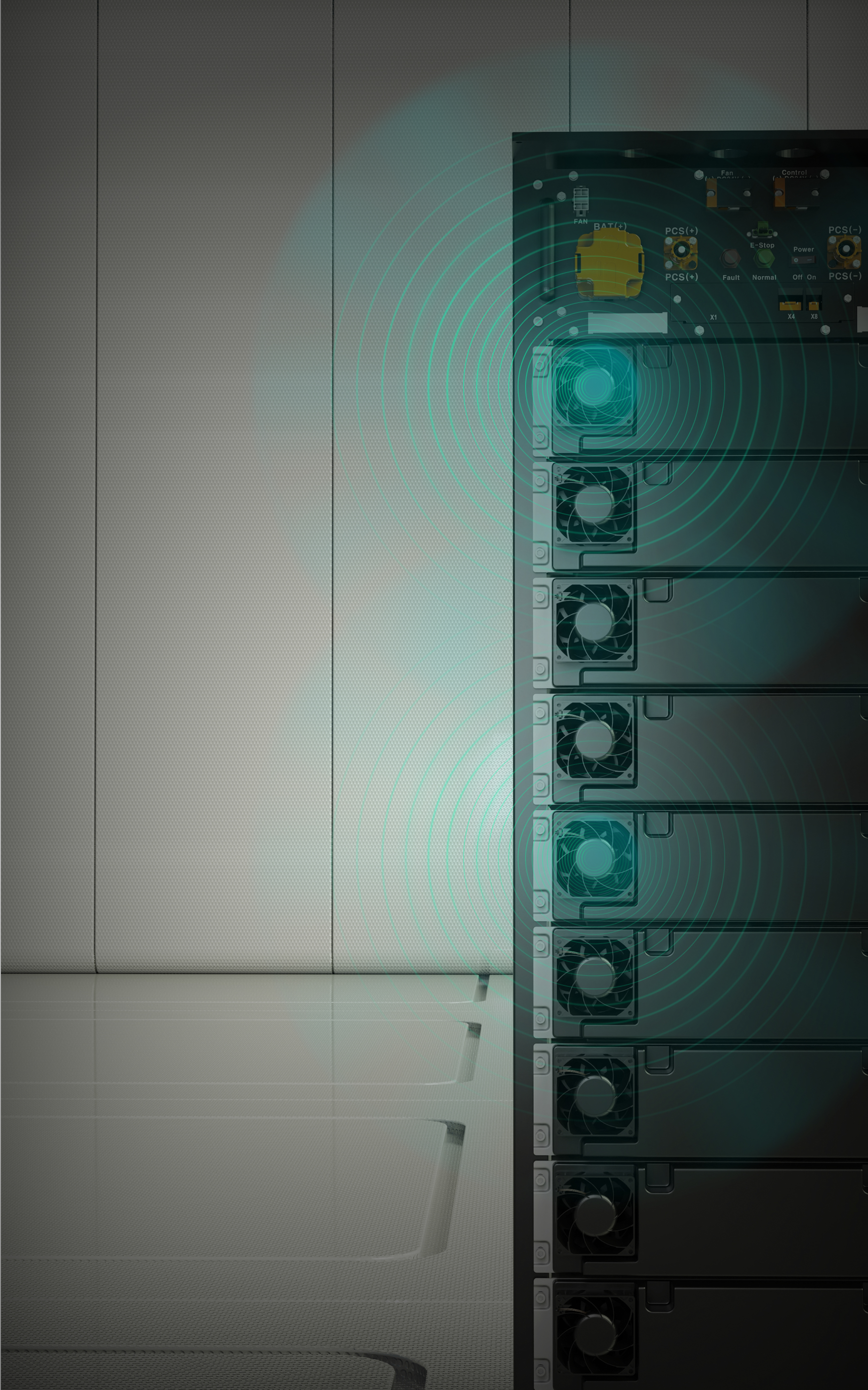

Optimization of Energy Consumption

Optimization of Energy Consumption

Instead of running large-scale cooling equipment continuously, individual fan speeds are precisely controlled based on the internal rack temperature. This effectively manages parasitic load consumed by cooling and improves overall energy efficiency.

Rack Type ESS Specification

Review our base specifications.

Check our baseline specifications. Download the product catalog for more comprehensive details.

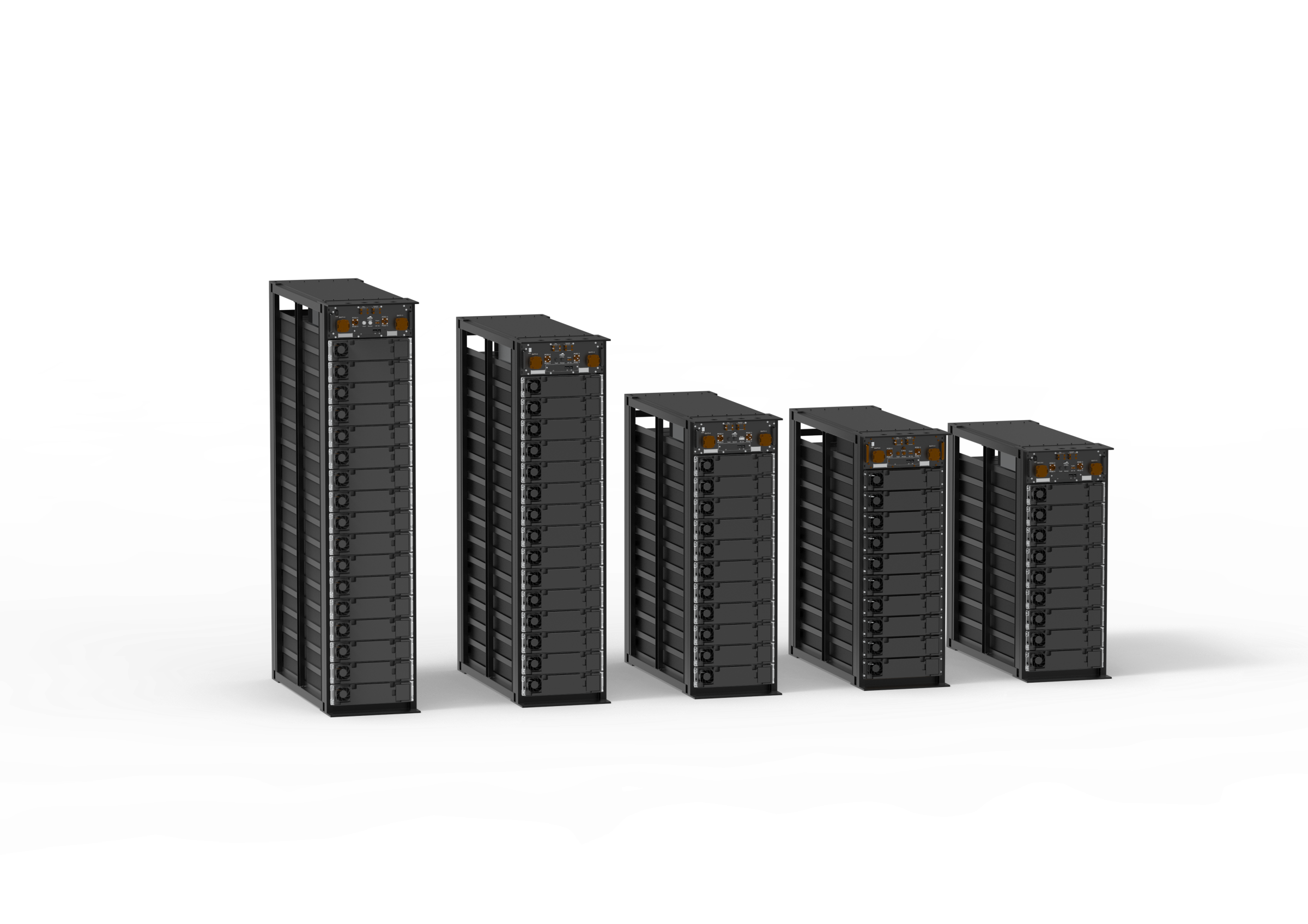

Rack Type ESS Specification

BESSProduct

(1/1)ESS System Specification
Item
DX17FDX15FDX11FDX10FDX09F
Voltage (V DC)
1313.761159.20850.08772.80695.52
Energy (kWh)
223.074196.830144.342131.220118.099
Max. Charge / Discarge Power (kW)
111.53798.41672.17165.61059.049
Max. Charge / Discarge Current (A)
109.35109.35109.35109.35109.35
Download Catalog

Energy Monitoring System for Rack Type ESS

It is because we have turned expectations into certainty through world-class technology and a sophisticated R&D process.

Product Gallery6
Flexibility in System Design

Flexibility in System Design

Rack Type ESS

Simple and Light-weight Air-cooling Technology

Simple and Light-weight Air-cooling Technology

Rack Type ESS

Design and Construction Flexibility

Design and Construction Flexibility

Rack Type ESS

Optimization of Energy Consumption

Optimization of Energy Consumption

Rack Type ESS

Easy Expand Architecture

Easy Expand Architecture

Rack Type ESS

System Lightweighting

System Lightweighting

Rack Type ESS

Discover the Ideal ESS for Your Infrastructure

C&I ESS

C&I ESS

Includes intelligent monitoring systems dedicated to Utility-scale ESS.

Advanced ODM/OEM support based on standard base models.

Learn More

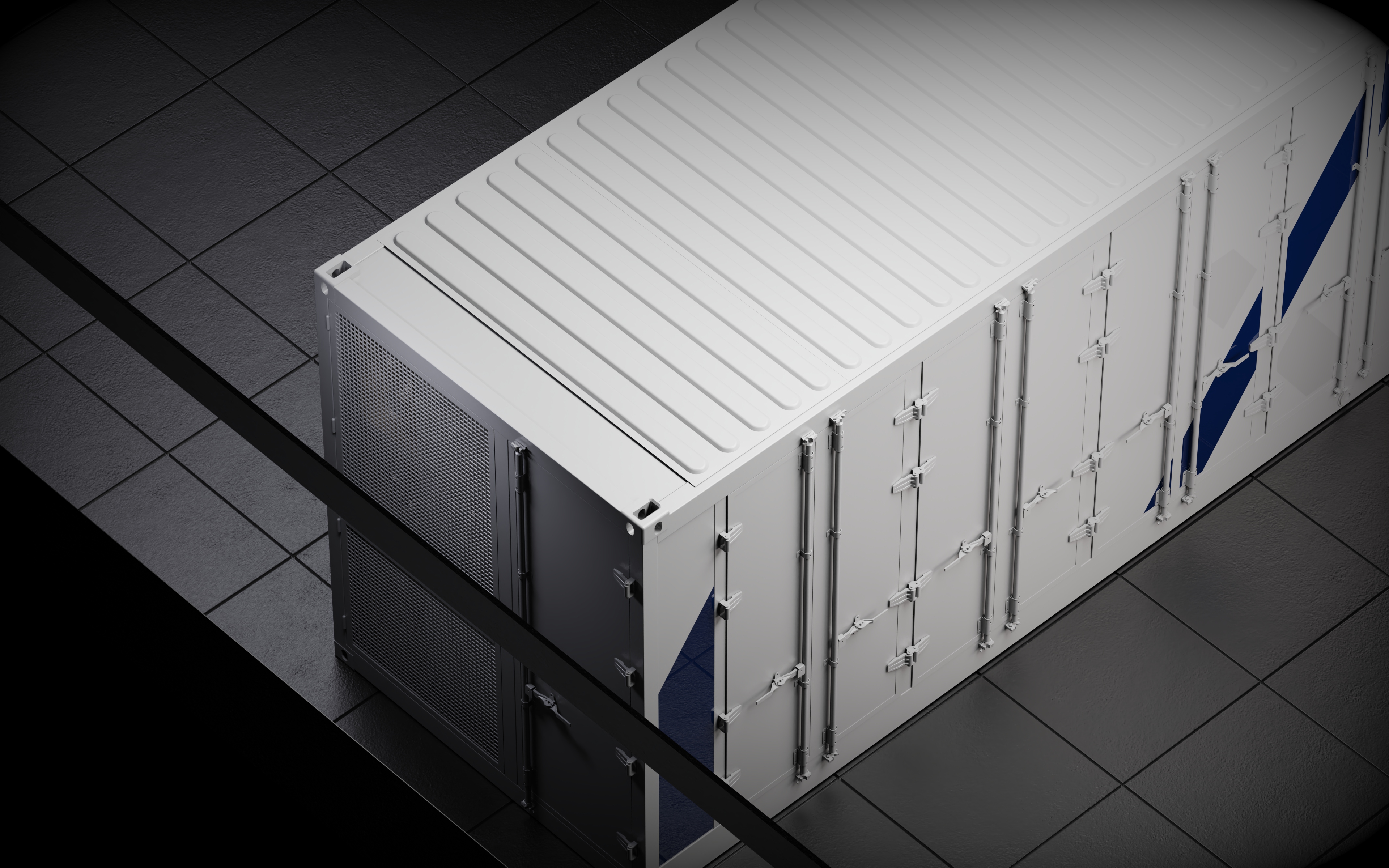

Utility ESS
