Distributed ESS JF1 optimized for the 2026 Sunshine Income Village

View Details
C&I ESS

C&I ESS




Seamlessly integrating for maximum building efficiency and safety

Optimized for Building Management System

Optimized for Building Management System

A technology designed to seamlessly integrate equipment such as ESS, lighting, and HVAC with the building's central management system (BMS) for operation at peak efficiency.

Optimized for Building Management System

Dramatic Reduction in Energy Costs

Dramatic Reduction in Energy Costs

건물의 실시간 전력 수요 데이터를 바탕으로 ESS의 충·방전 시점을 조절하고 부하를 분산하여 피크 전력 요금을 낮춥니다. 이를 통해 에너지 소비 효율을 극대화하고 운영 비용을 절감할 수 있습니다.

Enhanced Operational Convenience through Integrated Control

Enhanced Operational Convenience through Integrated Control

개별 설비를 따로 관리할 필요 없이 하나의 플랫폼에서 모니터링과 제어가 가능합니다. 관리 인력의 업무 효율을 높이고 인적 오류를 줄일 수 있습니다.

Predictive Maintenance and Asset Life Extension

Predictive Maintenance and Asset Life Extension

시스템이 건물의 전체적인 환경 부하를 학습하여 설비에 무리가 가지 않도록 최적의 조건으로 운용합니다. 이상 징후를 조기에 감지해 큰 고장이 발생하기 전에 유지보수가 가능합니다.

All-in-one Architecture

All-in-one Architecture

Integration of batteries, Power Conversion System (PCS), Battery Management System (BMS), HVAC, and fire suppression systems into a single cabinet.

All-in-one Architecture

Simplified Installation and Commissioning

Simplified Installation and Commissioning

모든 구성 요소가 공장에서 사전 조립 및 테스트를 마친 상태로 출하됩니다. 현장에서는 전력망 연결만으로 즉시 가동이 가능해 공사 기간과 비용을 대폭 단축할 수 있습니다.

Maximized Space Efficiency

Maximized Space Efficiency

각 구성 요소를 별도로 설치할 때보다 배선과 이격 거리를 줄여 설비 면적을 최소화합니다. 좁은 상업용 건물 부지나 공장 내부에도 유연하게 배치할 수 있습니다.

ITC (Invest Tax Credit) complied (US Made)

ITC (Invest Tax Credit) complied (US Made)

Fully compliant with U.S. federal tax credit criteria by utilizing batteries and core components manufactured within the United States.

C&I ESS Specification

Review our base specifications.

Check our baseline specifications. Download the product catalog for more comprehensive details.

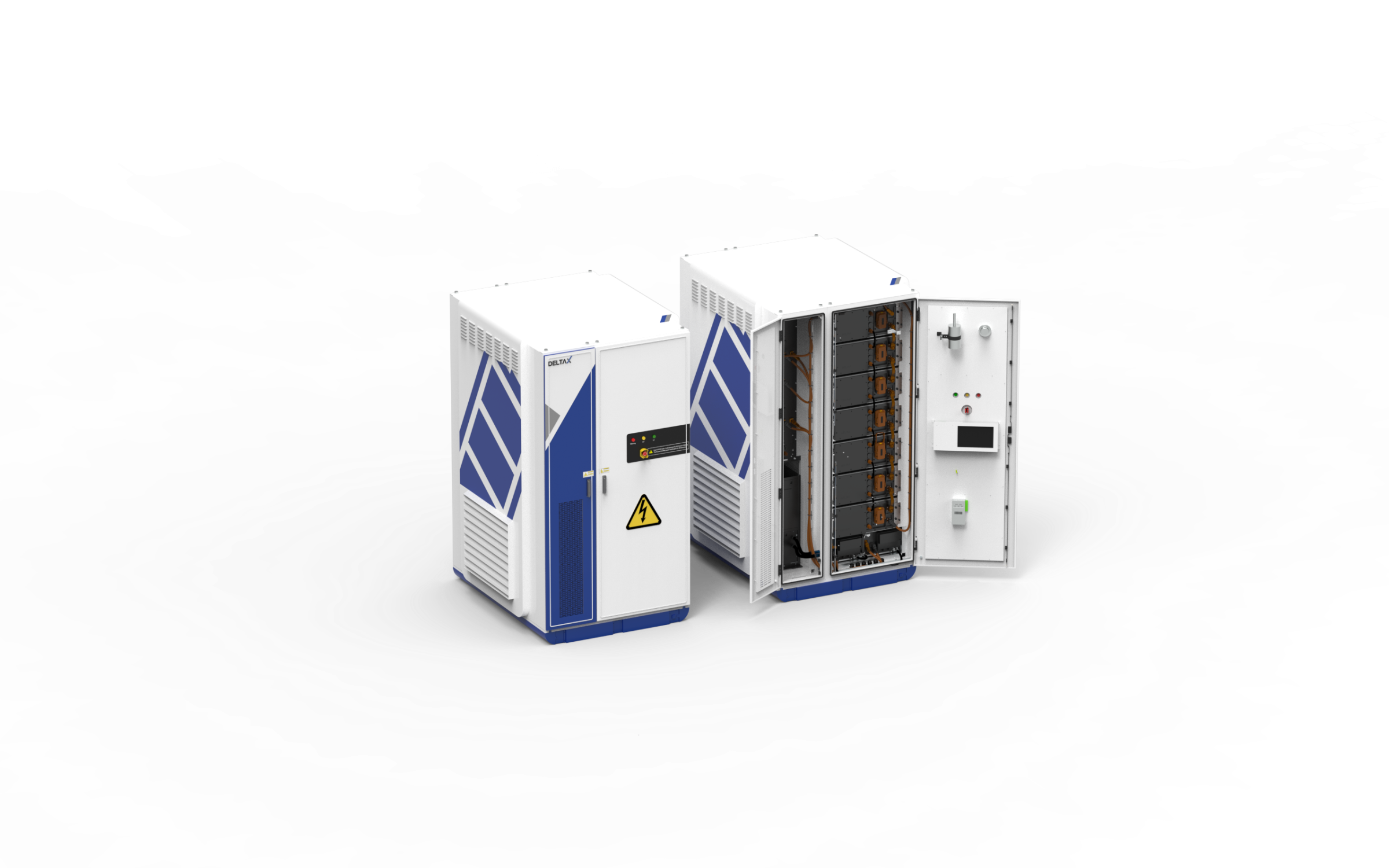

C&I ESS Specification

BESSProduct

(1/3)Main Feature
  • TypeAll-in One (PCS)
  • EnclosureCabinet
  • CoolingLiquid Cooling (Selective Immersion Technology)
  • Battery CellLFP (Pouch)
  • Power Rating0.25CP / 0.5CP
(2/3)Battery Module
  • Configuration2P48S / 3P48S / 4P48S / 4P30S
  • Nominal Voltage (V)153.6 / 153.6 / 153.6 / 96
  • Capacity (Ah)318.4 / 477.6 / 636.8 / 636.8
  • Energy (KWh)48.9 / 73.4 / 97.8 / 61.1
  • IP Grade (Cabinet / Module)IP55 / IP67
(3/3)ESS System
  • Configuration2P336S / 3P336S / 4P336S / 4P330S
  • Nominal Voltage (V)1,075 / 1,075 / 1,075 / 1,056
  • Capacity (Ah)318.4 / 477.6 / 636.8 / 636.8
  • Energy (KWh)342.3 / 513.5 / 684.7 / 672.5
Download Catalog

Energy Monitoring System for C&I ESS

It is because we have turned expectations into certainty through world-class technology and a sophisticated R&D process.

Product Gallery6

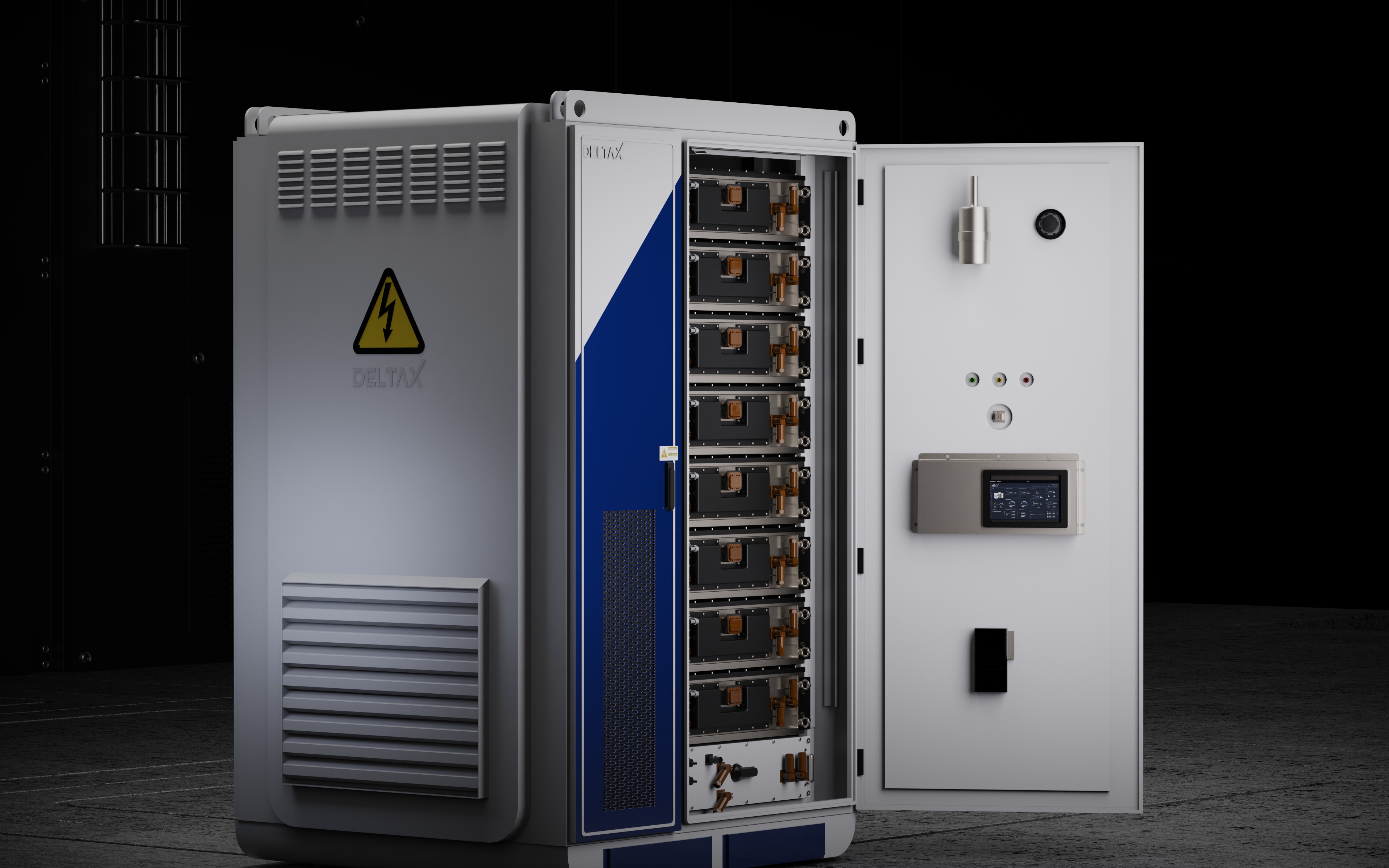

Perspective View

Perspective View

C&I ESS

All-in-one Architecture

All-in-one Architecture

C&I ESS

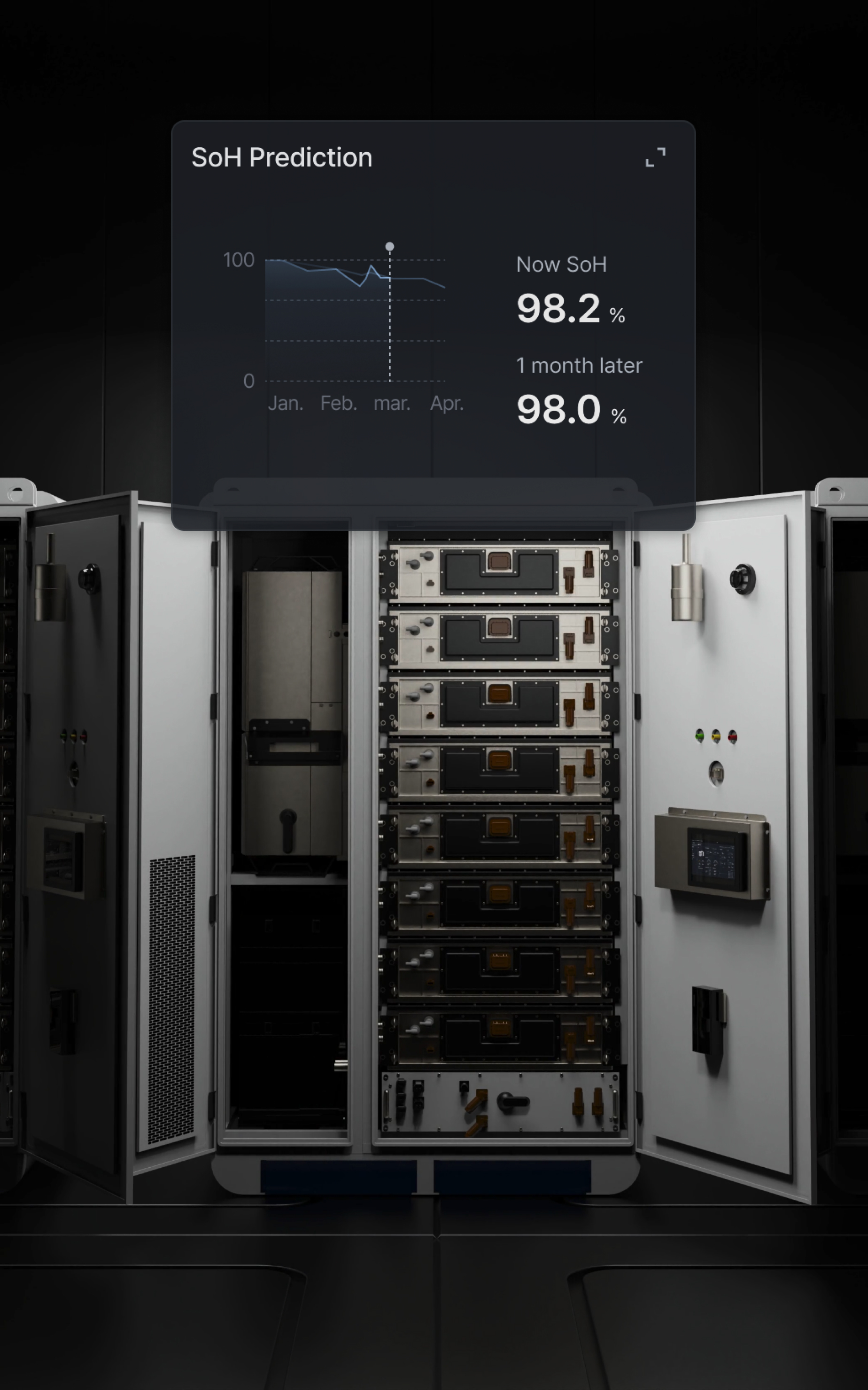

Predictive Maintenance and Asset Life Extension

Predictive Maintenance and Asset Life Extension

C&I ESS

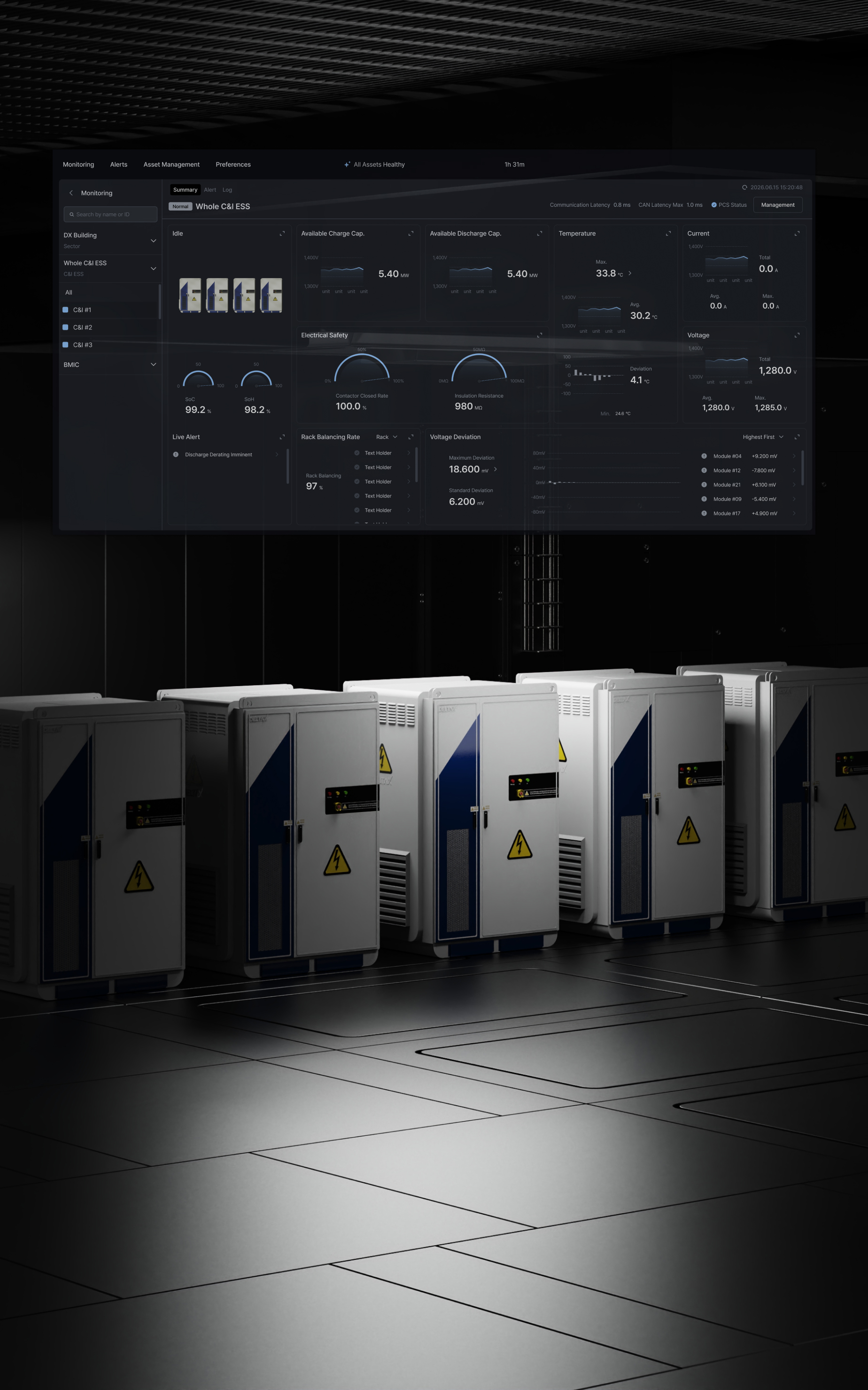

Enhanced Operational Convenience through Integrated Control

Enhanced Operational Convenience through Integrated Control

C&I ESS

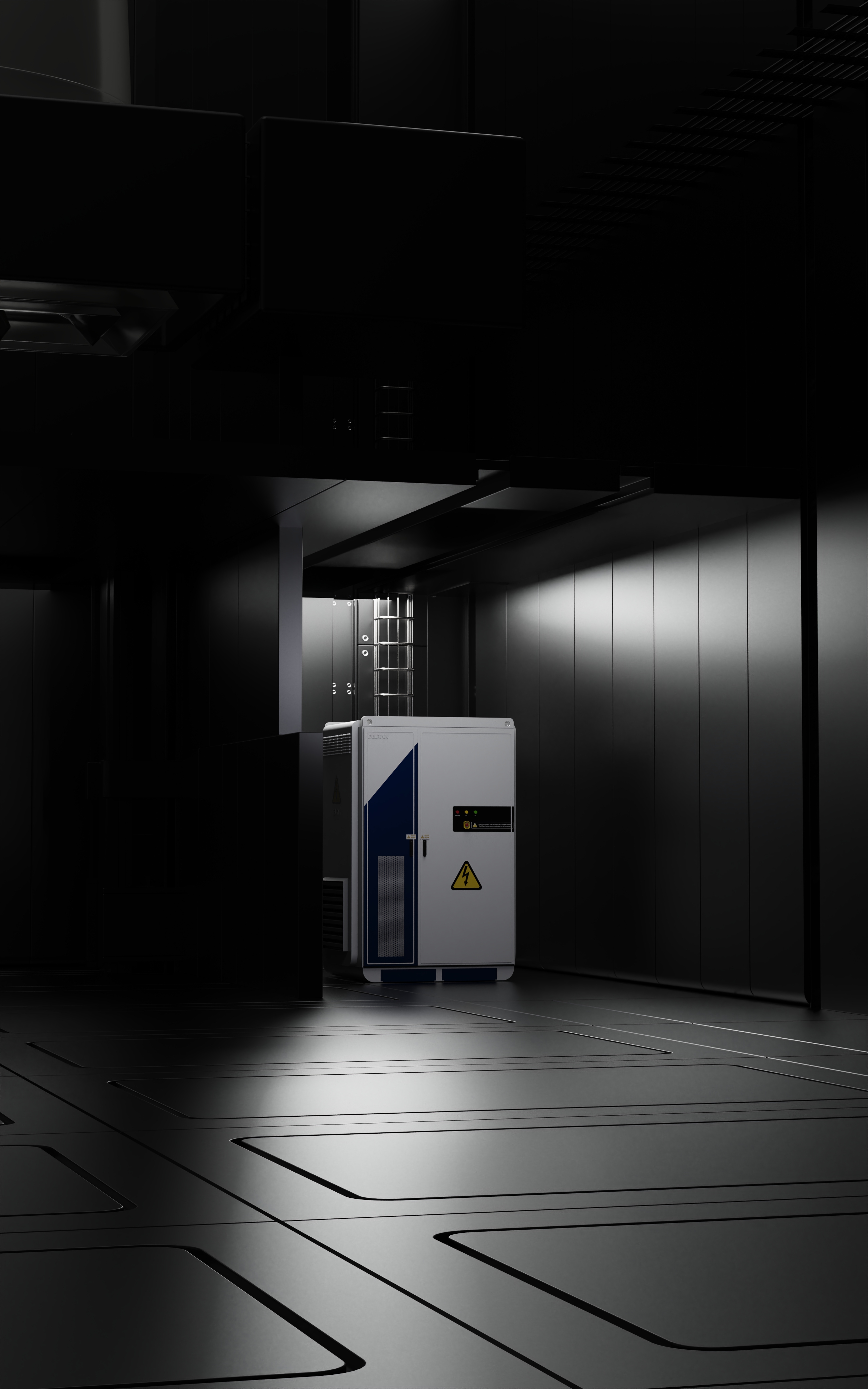

Maximized Space Efficiency

Maximized Space Efficiency

C&I ESS

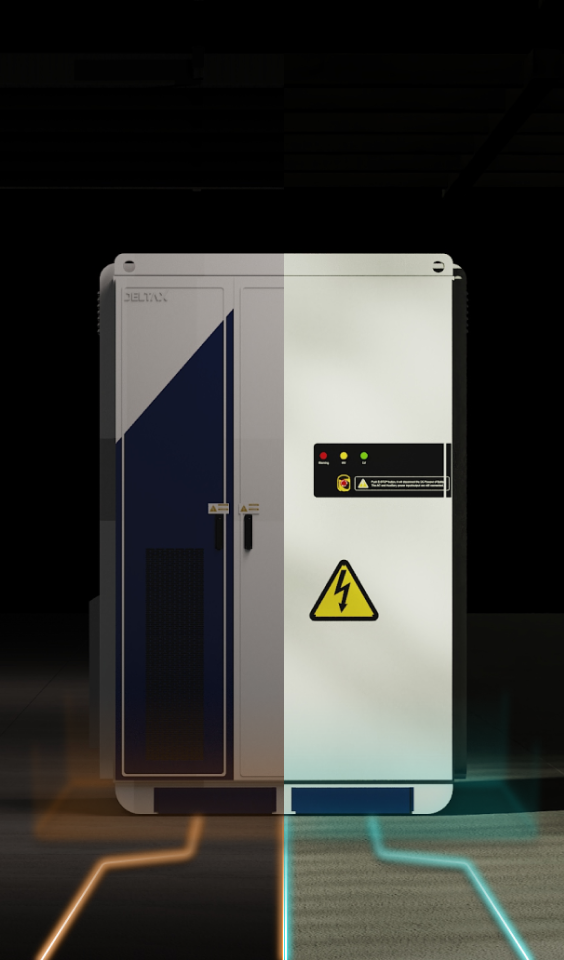

Dramatic Reduction in Energy Costs

Dramatic Reduction in Energy Costs

C&I ESS
